Certifications
Our hot-dip galvanising process is carried out in accordance with internationally recognised standards and supported by a comprehensive quality management system to ensure consistent and reliable coating quality.
Quality Control Throughout the Galvanising Process
Incoming Inspection
Material condition and venting requirements checked before processing.

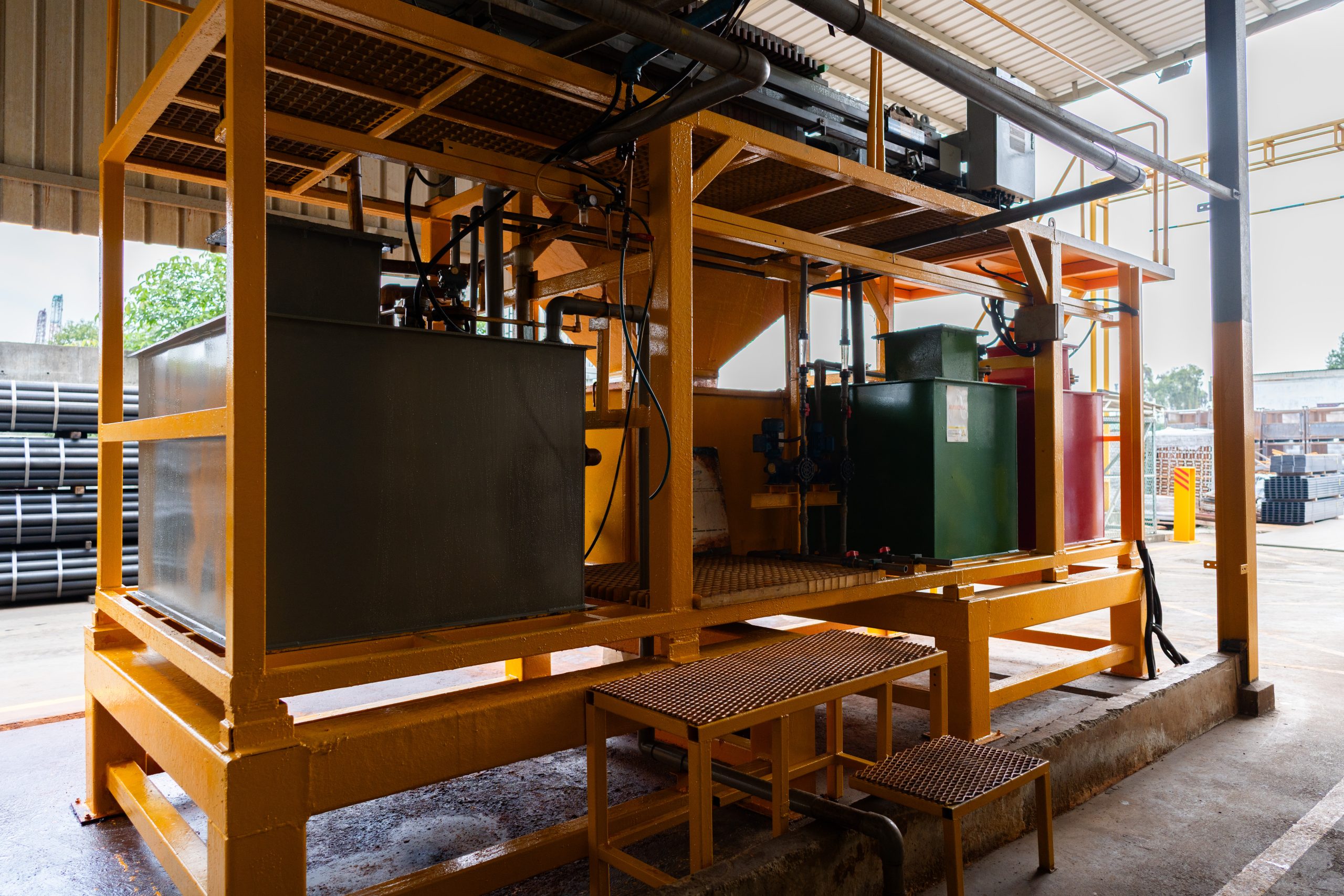

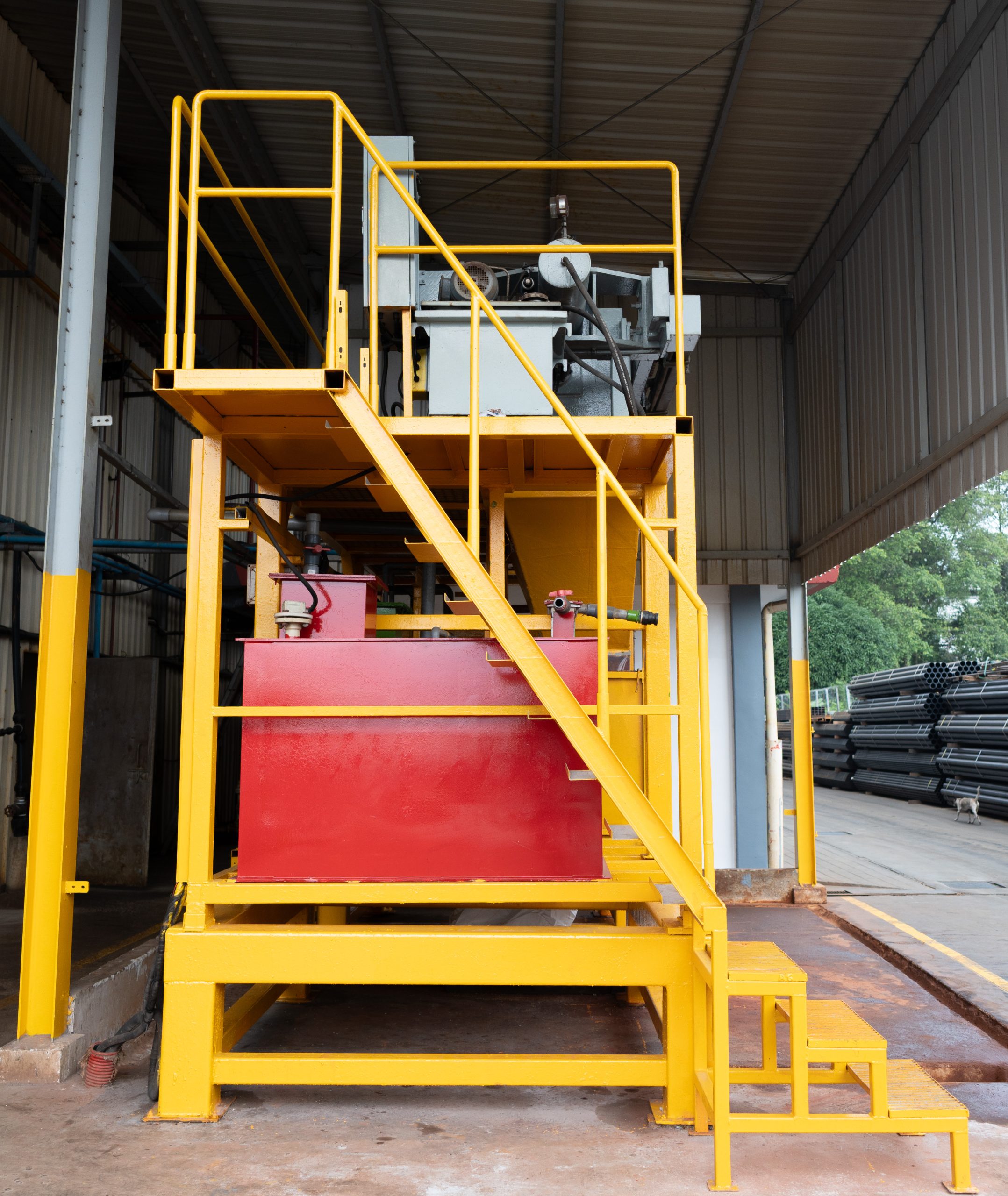

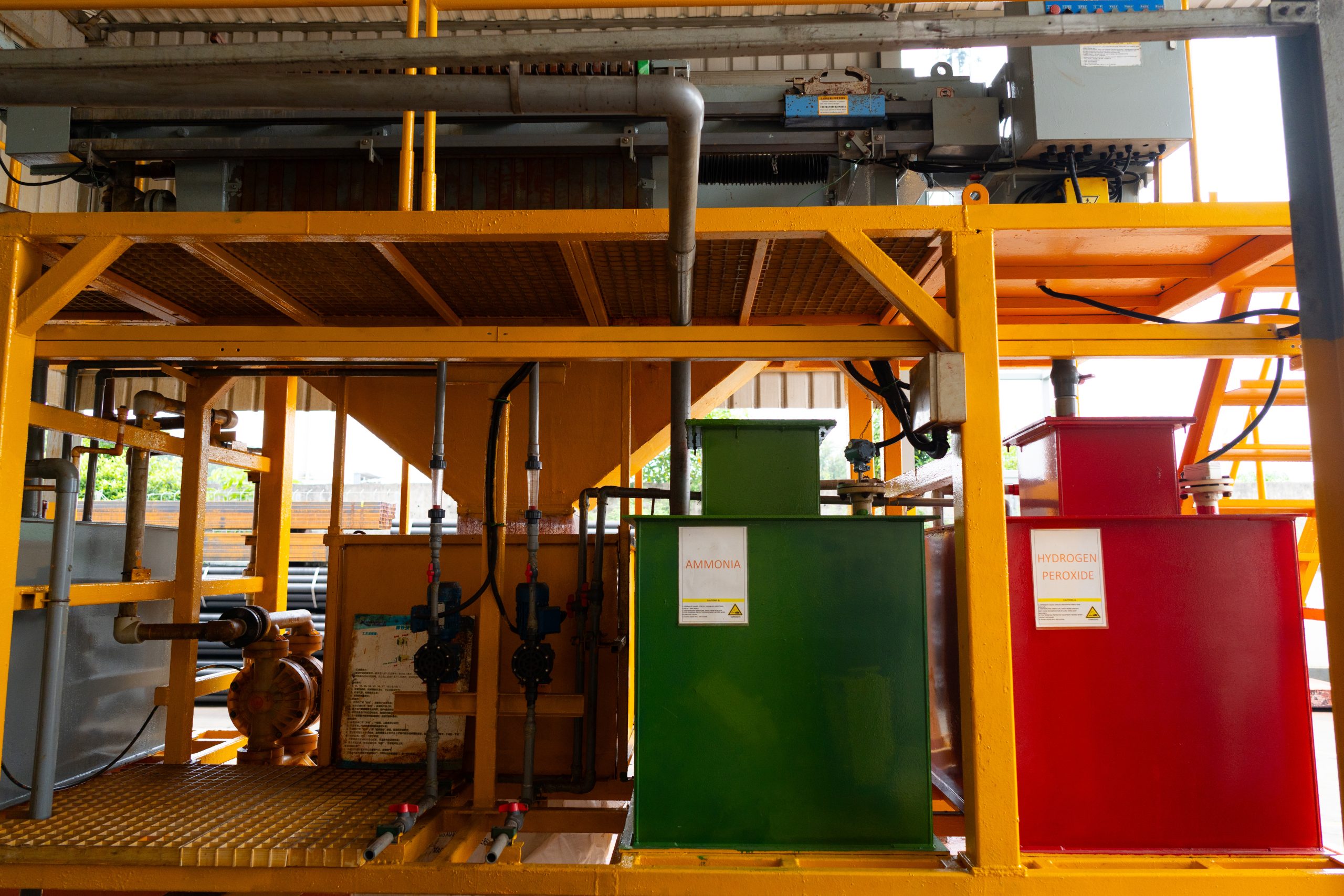

Surface Preparation Monitoring

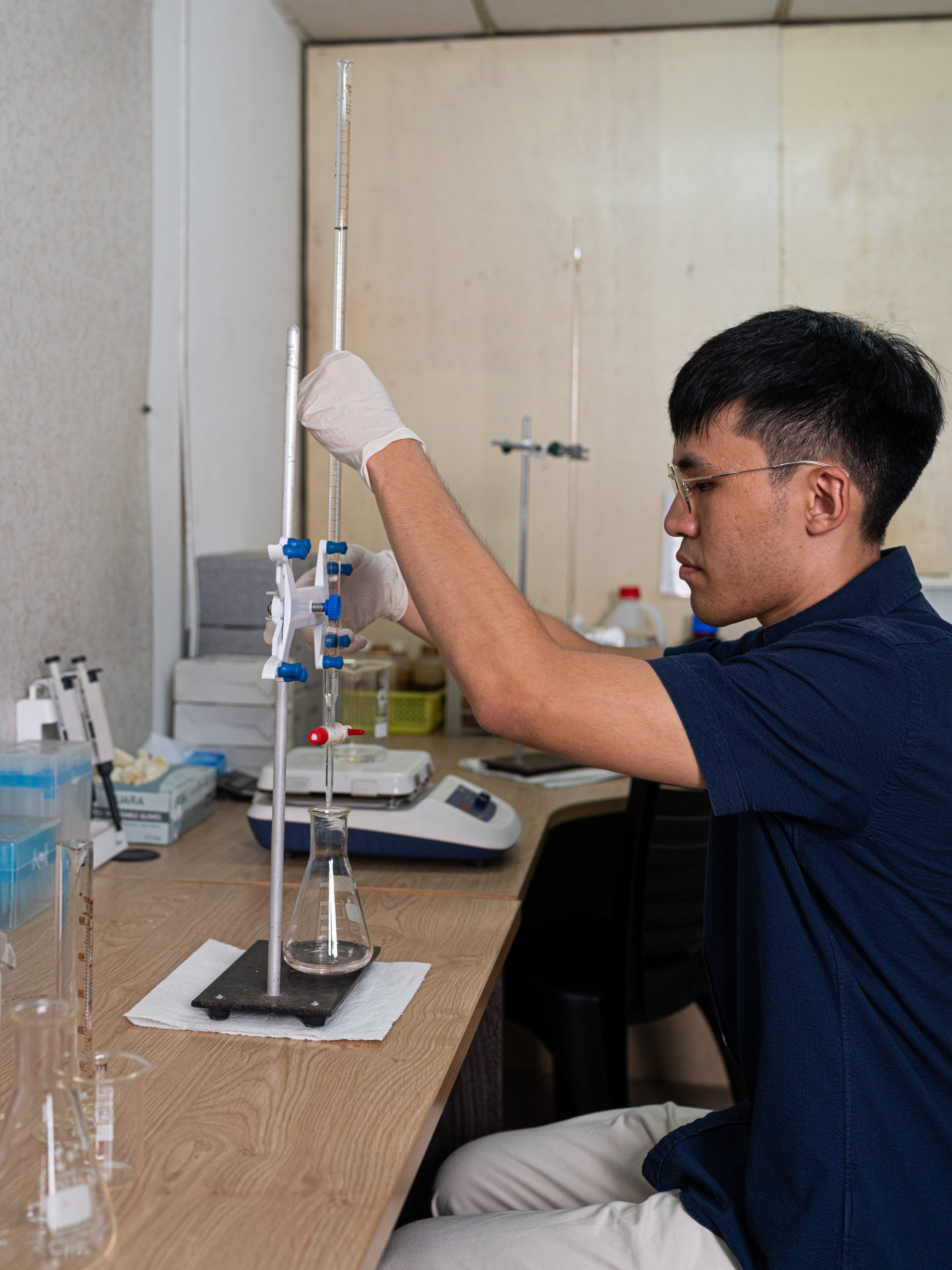

Treatment solutions regularly inspected and maintained.
Coating Verification

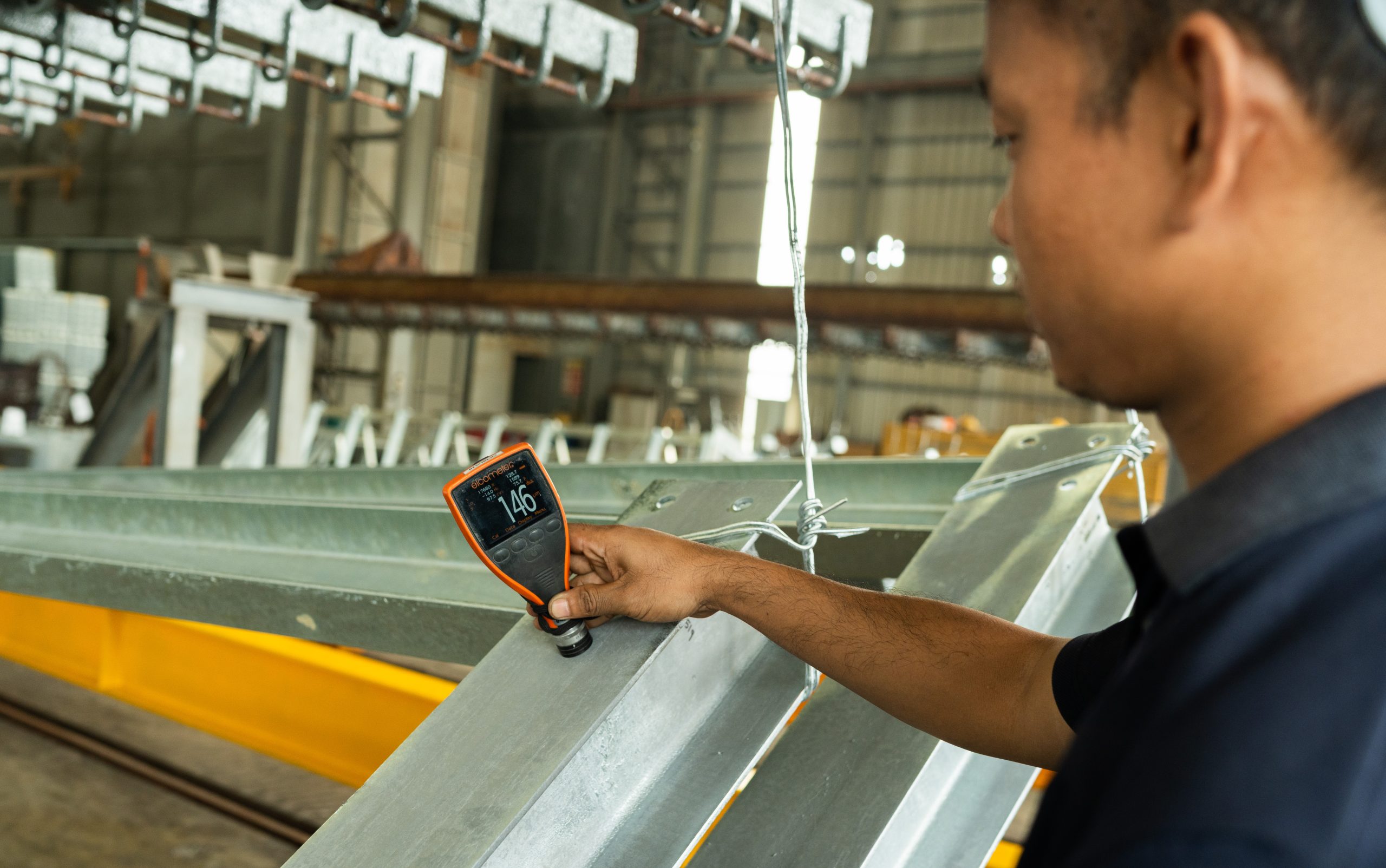

Elcometer testing conducted to verify coating thickness.

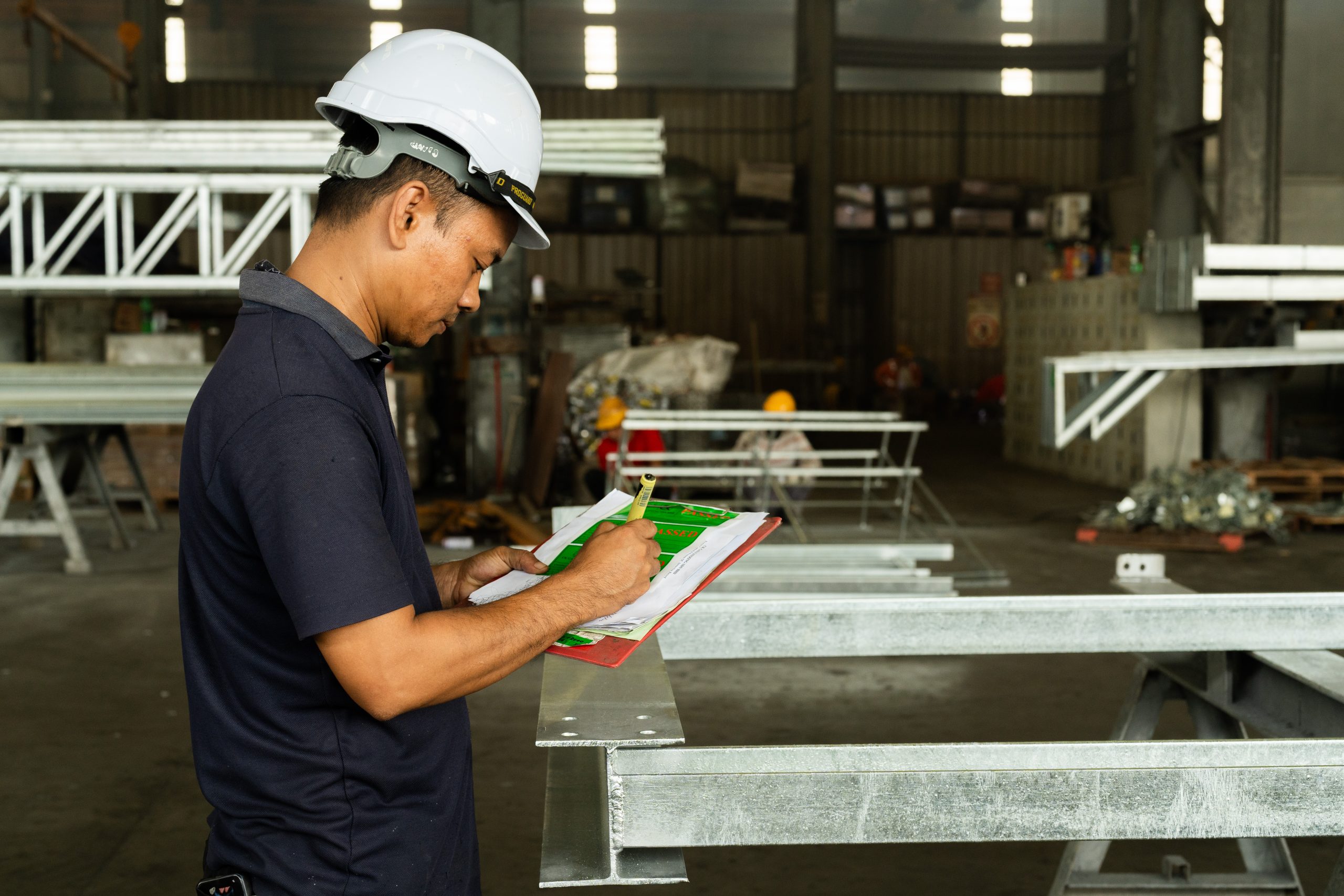

Final Inspection
Products inspected before release or re-galvanized where required.
Standards & Specifications
Hot-dip galvanizing is done in accordance to British Standard (BS EN ISO 1461: 2022), with minimum coating thickness requirements based on non-centrifuged sample averages.
| Article and its thickness | Local galvanized coating thickness (minimum) | Local galvanized coating mass (minimum) | Mean galvanized coating thickness (minimum) | Mean galvanized coating mass (minimum) |
|---|---|---|---|---|
| µm | g/m² | µm | g/m² | |
| Steel: >6 mm | 70 | 505 | 85 | 610 |
| Steel: >3 mm to ≤6 mm | 55 | 395 | 70 | 505 |
| Steel: ≥1.5 mm to ≤3 mm | 45 | 325 | 55 | 395 |
| Steel: <1.5 mm | 35 | 250 | 45 | 325 |
| Castings: >6 mm | 70 | 505 | 80 | 575 |
| Castings: ≤6 mm | 60 | 430 | 70 | 505 |
Other equivalent International Standards
American Standard: ASTM A123 & 153
Australian Standard: AS1650
Australian Standard: AS1650
